How to adjust the expansion valve for an ice machine evaporator?

As a reputable supplier of high - quality ice machine evaporators, we understand the critical role that the expansion valve plays in the efficient operation of your ice machine. The expansion valve is a key component in the refrigeration cycle of an ice machine evaporator, controlling the flow of refrigerant into the evaporator coil. Proper adjustment of the expansion valve ensures optimal ice production, energy efficiency, and longevity of the equipment. In this blog post, we will guide you through the process of adjusting the expansion valve for an ice machine evaporator.

Understanding the Role of the Expansion Valve

Before delving into the adjustment process, it is essential to grasp the function of the expansion valve. The expansion valve regulates the amount of refrigerant entering the evaporator. When the refrigerant passes through the expansion valve, its pressure drops suddenly, causing it to expand and evaporate. This evaporation process absorbs heat from the surrounding water in the ice machine, leading to ice formation.

An incorrectly adjusted expansion valve can lead to several issues. If the valve allows too much refrigerant to enter the evaporator, the evaporator may flood, resulting in reduced ice production and potential damage to the compressor. On the other hand, if too little refrigerant flows through the valve, the evaporator will not operate at its full capacity, leading to inefficient ice - making and increased energy consumption.

Tools Required for Adjustment

To adjust the expansion valve of an ice machine evaporator, you will need the following tools:

Pressure gauges: These are used to measure the pressure of the refrigerant at different points in the system. A high - pressure gauge and a low - pressure gauge are required.
Thermometer: To measure the temperature of the refrigerant and the evaporator.
Screwdriver: Depending on the type of expansion valve, you may need a flat - head or Phillips - head screwdriver to make adjustments.

Pre - adjustment Checks

Before starting the adjustment process, it is crucial to perform some pre - adjustment checks:

Inspect the system: Check for any visible leaks in the refrigerant lines, loose connections, or damaged components. A refrigerant leak can affect the pressure and temperature readings, making it difficult to adjust the expansion valve accurately.
Verify the ice machine's operation: Make sure the ice machine is running normally and producing ice. This will give you a baseline for comparison during the adjustment process.

Step - by - Step Adjustment Process

Step 1: Locate the Expansion Valve

The expansion valve is typically located on the refrigerant line leading to the evaporator. It may be enclosed in a protective cover, so you may need to remove the cover to access the valve.

Step 2: Take Initial Readings

Use the pressure gauges and thermometer to take initial readings of the refrigerant pressure and temperature. Measure the high - pressure and low - pressure sides of the system, as well as the temperature of the refrigerant leaving the evaporator. These readings will serve as a reference point for adjustment.

Step 3: Determine the Target Superheat

Superheat is the difference between the actual temperature of the refrigerant vapor leaving the evaporator and its saturation temperature at the corresponding pressure. The target superheat value for an ice machine evaporator can vary depending on the specific model and operating conditions. Consult the manufacturer's manual to find the recommended superheat value.

Step 4: Adjust the Expansion Valve

To adjust the expansion valve, locate the adjustment screw. Turning the screw clockwise will generally decrease the flow of refrigerant, increasing the superheat. Turning the screw counter - clockwise will increase the refrigerant flow, reducing the superheat.

Make small adjustments, typically a quarter - turn at a time. After each adjustment, wait for a few minutes to allow the system to stabilize. Then, take new pressure and temperature readings and calculate the new superheat value.

Step 5: Monitor and Fine - tune

Continue making adjustments and monitoring the superheat value until it reaches the target range specified by the manufacturer. This may take several attempts, so be patient and make small, incremental changes. Once the superheat is within the desired range, the expansion valve is properly adjusted.

Common Issues and Troubleshooting

During the adjustment process, you may encounter some common issues:

Inaccurate Readings: If the pressure gauges or thermometer are not calibrated correctly, the readings may be inaccurate. Make sure to calibrate your tools regularly or use professional - grade equipment.
Sticking Valve: Sometimes, the expansion valve may stick due to dirt or debris. If you notice that the valve is not responding to adjustments, you may need to clean or replace the valve.
Refrigerant Charge: If the refrigerant charge in the system is incorrect, it can affect the superheat value. Check the refrigerant level and add or remove refrigerant as necessary according to the manufacturer's specifications.

Our Ice Machine Evaporators and Expansion Valve Compatibility

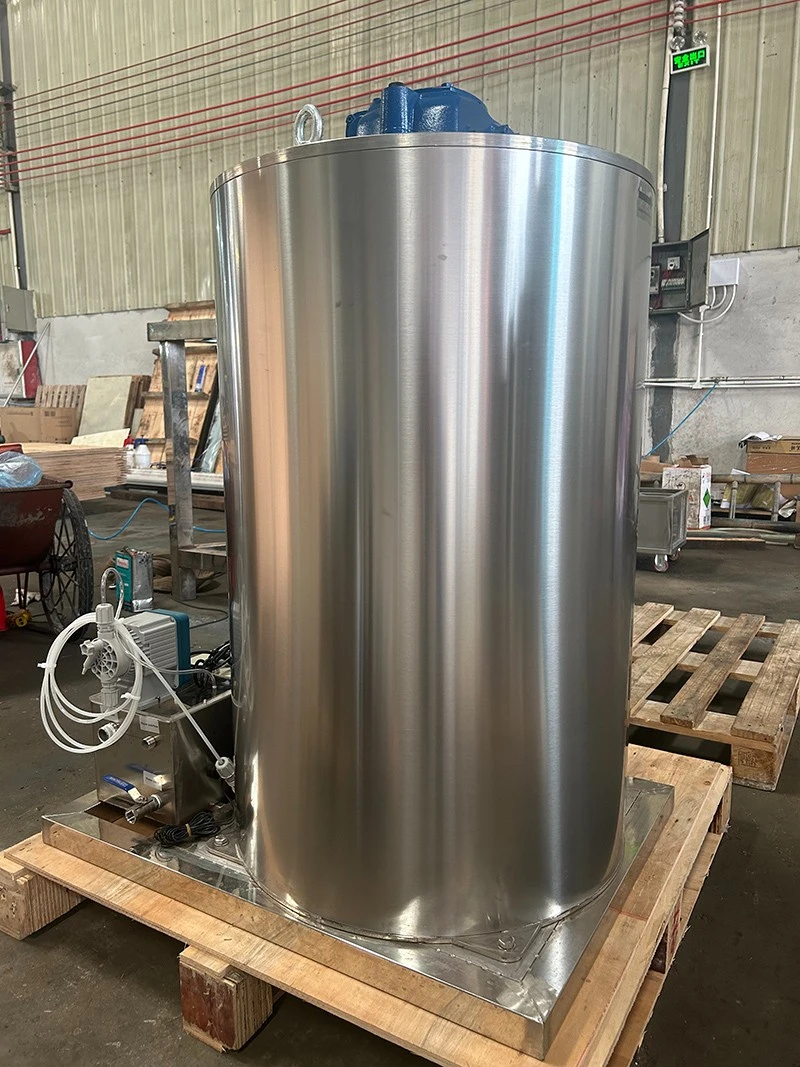

At our company, we offer a wide range of high - quality ice machine evaporators, including 10T Flake Ice Maker Evaporator, Stainless Steel Ice Machine Evaporator, and Flake Ice Machine Evaporator. Our evaporators are designed to work seamlessly with properly adjusted expansion valves.
